Laser Diode Drivers

State-of the art laser diode drivers designed for the emerging high power laser diode industry.

Lumina Power state-of the art laser diode drivers are designed for the emerging high power laser diode industry. Learn more about our lineup of laser diode drivers, pulsed laser diode drivers and laser power supplies below.

Looking for a specific product?  Use these links: LDD LDP LDN LDDHC LDPC LDQPC HPP LDQCW LDDC LDY

LDD


LDD High Power Laser Diode Drivers

The LDD series high power laser diode driver is a new family of OEM laser diode driver designed for the emerging high power laser diode industry. The LDD series high power diode laser driver is ideal for high power applications where economy is important and performance cannot be compromised. Compact size is possible due to the low-loss Zero Voltage Switching inverter and incorporation of planar magnetics. The LDD is virtually wire free.
View LDD Product Details
Ideal for OEM applications
Power factor is greater than 0.99
Low conducted emissions, low leakage
Output current up to 300A

LDP

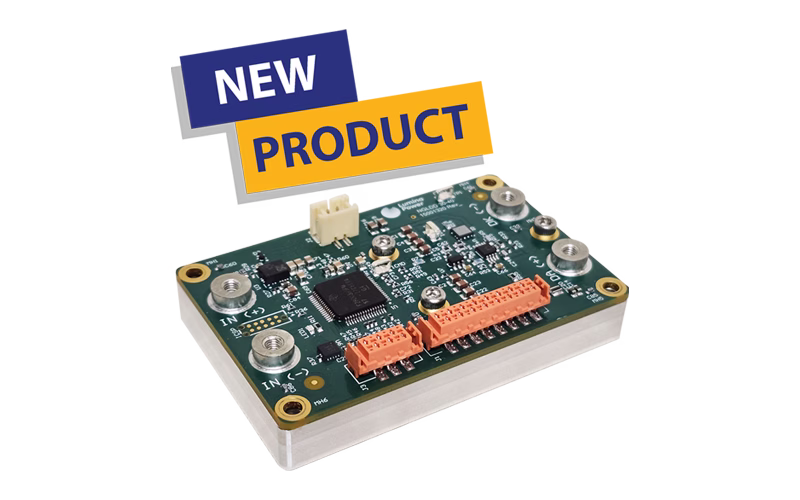

LDP Pulsed Laser Diode Driver

LDP Pulsed/CW Laser Diode Drivers

The New LDP pulsed laser diode drivers are the second generation of precision pulsed diode drivers offered by Lumina Power. Building on more than a decade of experience in laser diode driver technology the new LDP drivers are capable of outputting up to 400 amps . Pulse widths of 30μs. through CW operation are now possible at rep-rates to 10kHz. The LDP incorporates new technology that enhances pulsed performance while reducing circuit complexity shrinking the size of the package and increases reliability.
View LDP Product Details
2000 Watts Average Output
Compliance Voltages to 100V
Pulse Widths From 30μs. to CW
10μs. Rise/Fall Time

LDN

LDN Series Laser Diode Driver

LDN Series Laser Diode Drivers

The LDN series laser diode drivers are the second generation of precision CW/Pulsed laser diode drivers offered by Lumina Power. Building on more than a decade of experience in laser diode driver technology, the LDN family incorporates the features of the LDD and LDY models.
View LDN Product Details
Increased energy storage for better pulsed performance
Newly designed magnetics for cooler operation
Lower inrush current at start-up
Availability of an optional Performance Level “E” laser safety feature

LDDHC

 LDDHC High Power Laser Diode Driver

LDDHC High Power Laser Diode Drivers

The LDDHC series high power laser diode driver is a new family of OEM laser diode drivers designed for the emerging high power laser diode industry. With output currents to 200amps the LDDHC series high power laser diode driver is available in 3 power levels and a wide range of compliance voltages.
View LDDHC Product Details
Available in 3 power levels from 600 to 1500 Watts
Ideal for OEM application
Conducted emissions meet stringent European regulations
Compact size and virtually wire-free

LDPC

LDPC Laser Diode Driver

LDPC Laser Diode Driver

The LDPC series laser diode drivers offer the laser designer a compact low cost power supply for a variety of medical and industrial applications. In order to take full advantage of this unique product, care must be taken during the design process to ensure long term reliability. The data sheet includes answers to many commonly asked questions about the various configurations available and includes critical cooling and electrical information.
View LDPC Product Details
DC input board level laser diode driver
For CW & pulsed applications
Compact design, low cost
50amp maximum output power

LDQPC

LDQPC Quasi-Pulsed Laser Diode Driver

LDQPC Quasi-Pulsed Laser Diode Driver

The LDQPC quasi-pulsed laser diode drivers are specifically designed for low cost high volume applications. These DC input modules are available with average output power to 100 watts and current output to 200 amps. With a rise/fall time of <10us. they are ideally suited for compact short pulse laser applications.
View LDQPC Product Details
Ideally suited for compact short pulse laser applications
Available with average output power to 100 watts
200 Amps peak current output
Compact & easy to integrate

HPP

HPP Laser Diode Pulser

HPP Laser Diode Pulser

The HPP laser diode pulser is a new concept in pulsed laser diode development. Designed to be used with the LDD series laser diode drivers as the power source, the HPP pulser can deliver up to 350 amps of output current with full protection of the laser diode. Pulse widths of ≤50µs to CW can be achieved with rise/fall times of <10µs and repetition rates to 5kHz. A CW simmer current of up to 10 amps is available.
View HPP Product Details
Continuously modulate current, pulse width and frequency
CW simmer mode available
Inputs for enable, trigger, output current, simmer voltage and CW / pulsed operation
Output is fully protected against open and short circuits along with overtemp

LDQCW

LDQCW Quasi-CW High Power Diode Laser Drivers

LDQCW Quasi-CW High Power Diode Laser Drivers

The LDQCW high power laser diode series is a new family of OEM diode laser pulsars designed for the emerging high power diode laser industry. Lumina Power LDQCW high power laser diode drivers can be configured for compliance voltage requirements up to 120V.
View LDQCW Product Details
Leakage current is less than 250uA
Power factor is greater than 0.99
Conducted emissions meet stringent European regulations
Compliance voltage capability up to 120V

LDDC

LDQCW Quasi-CW High Power Diode Laser Drivers

LDDC Universal Laser Diode Driver Controller

The Lumina Power Laser Diode Driver Controller (LDDC) provides a means of controlling all types of laser diode driver supplies. It allows the ability to easily control current levels, pulse modes, and interlock controls as well as monitor voltage and current levels from the driver. The LDDC provides an easy user interface for manual control and readout as well as USB connectivity for remote computer control.
View LDDC Product Details
Software configurable for any LDD model
Single shot, continuous, burst and CW modes
Easy setup and operation
USB connectivity to any PC computer

LDY

LDY Series CW/QCW Laser Diode Driver

LDY Series CW/QCW Laser Diode Drivers

The LDY series laser diode drivers are a family of OEM laser diode drivers with all the performance of Lumina’s flagship LDD line of laser diode drivers, as well as additional functions including pulsing capability, over-temperature sensing and crowbar shorting of the output.
View LDY Product Details
Power factor correction
Power factor correction
Safe turn-on/turn-off
Low conducted emissions, low leakage
